Morimoto XB Evo LED Headlights For Tundra (2007-2013)

Morimoto XB Evo LED Headlights For Tundra (2007-2013)

$1,449.00

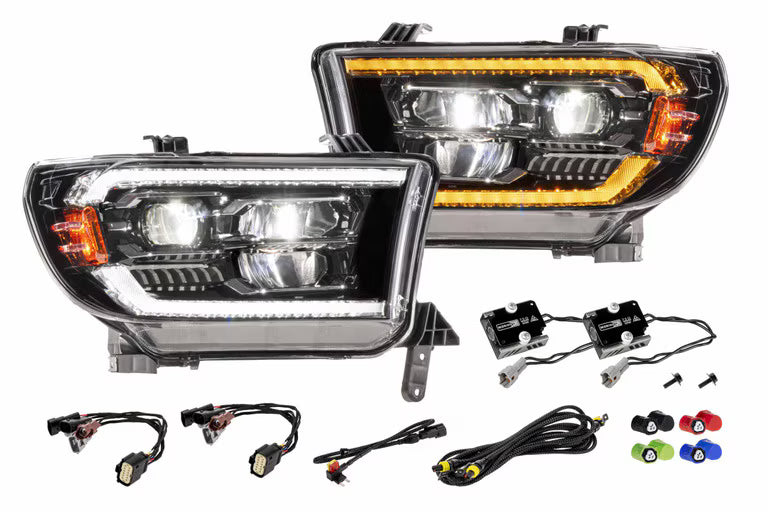

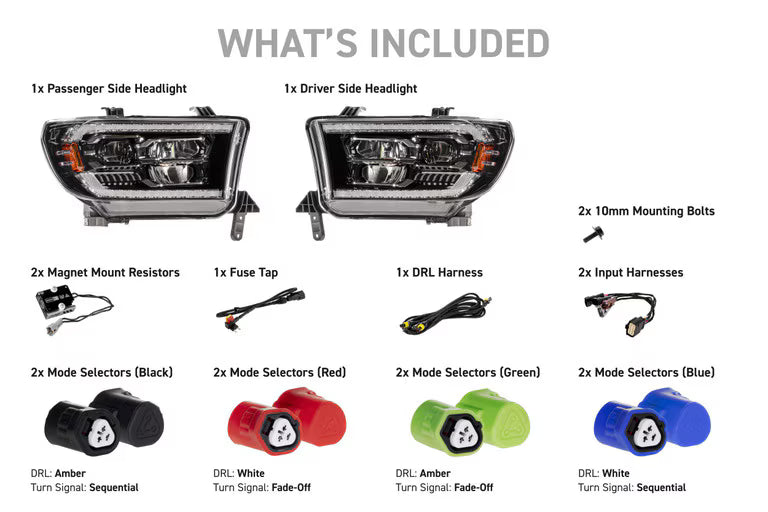

WHAT’S INCLUDED

  • Headlights : One Pair (1x RH / Passenger Side Headlight, 1x LH / Driver Side Headlight)

  • Accessories : 2x Halogen Input Harnesses, 2x LED Input Harnesses, 2x Magnet Mount Resistors, 1x Fuse Tap, 1x DRL Harness, 8x (Four Pairs) Mode Selectors, 2x Turn Signal Adapters, 2x Incandescent DRL Modules

  • Optional Supercharged Drivers : LF2-DRVSC11 Drivers

  • Optional Protective Film : Lamin-X Clear Film custom fit for LF2-533

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s). This warranty is only valid if the item is purchased from an Authorized Dealer.

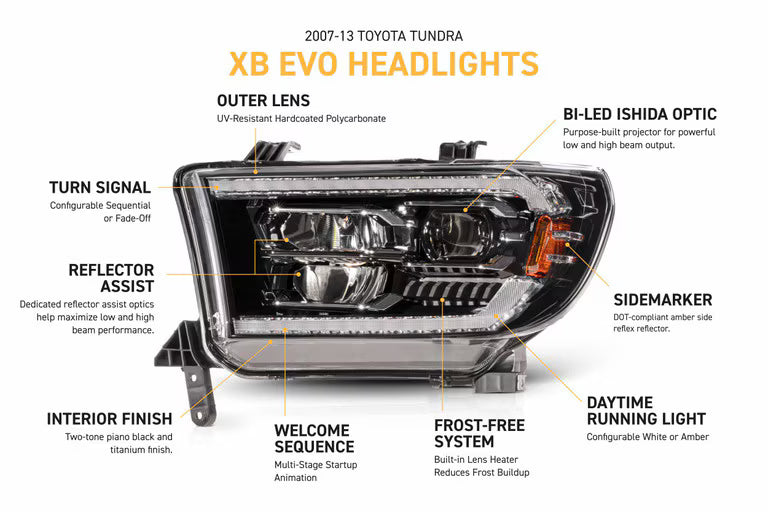

TECHNICAL SPECIFICATIONS

  • Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)

  • Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)

  • Output (Supercharged Drivers) : Off-Road use only

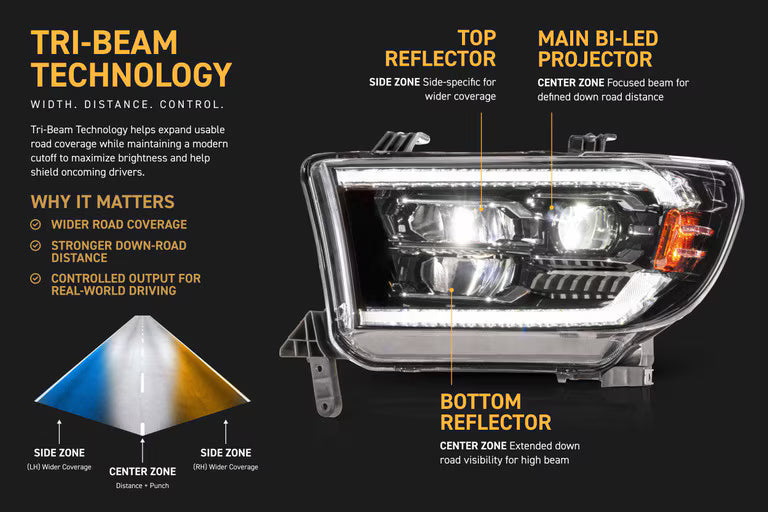

  • Main Optics : 1x Type 1 Ishida Optic Bi-LED, 1x Low-Beam Reflector Assist, 1x High-Beam Reflector Assist

  • Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating

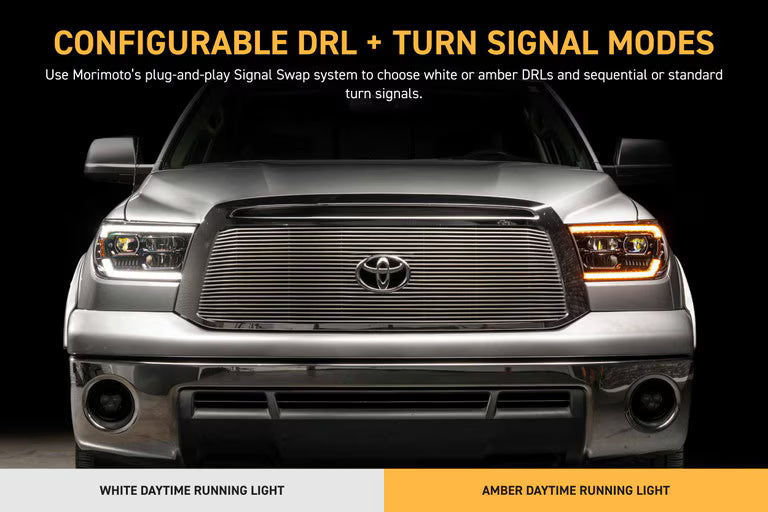

  • Turn Signal Modes : Sequential or Fade Off (Configurable)

  • DRL Colors : White or Amber (Configurable)

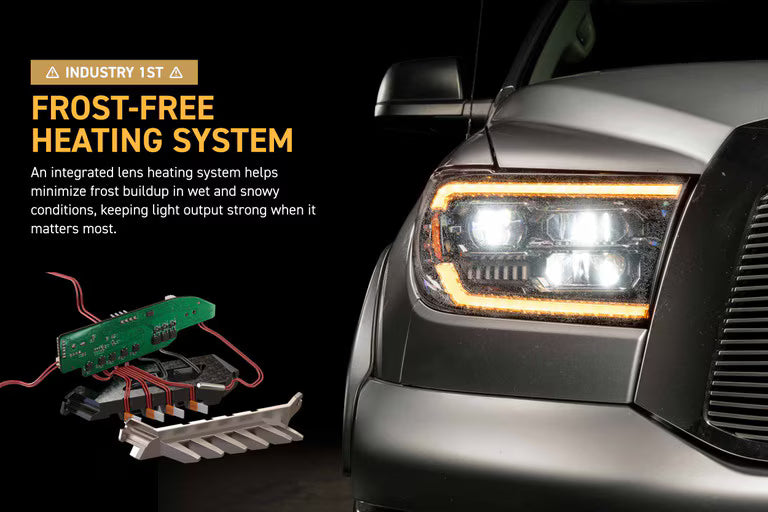

  • Frost-Free System : Logic-controlled 50w ceramic w/ circulation fans

  • Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures

  • Side marker : Amber side reflex reflector (DOT compliant)

  • Lens Details : Polycarbonate with proprietary anti-UV hard coating
