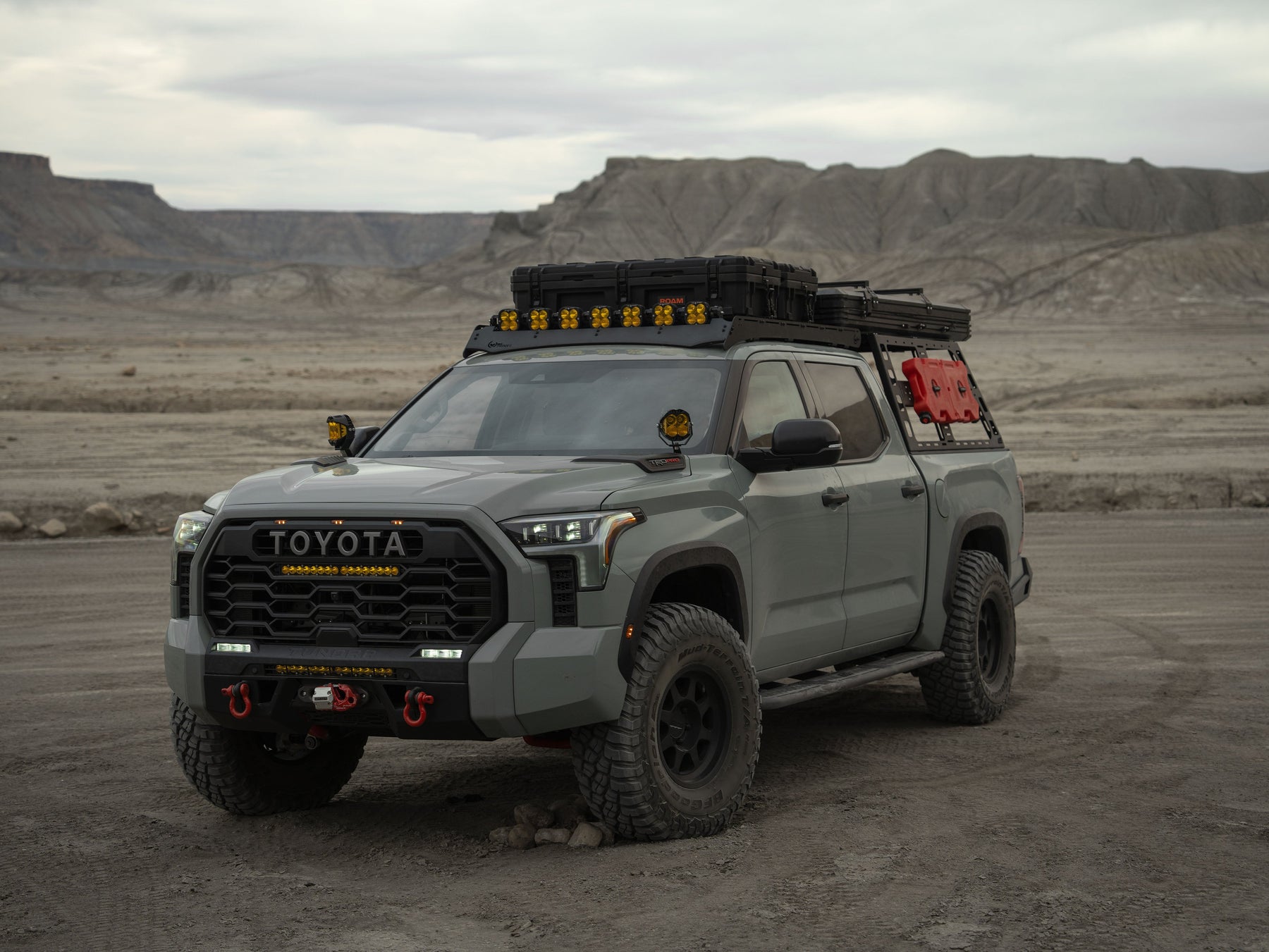

How to Install a Winch on Your Toyota Tundra: Step-by-Step 2025 Guide

A winch is one of those trail tools you hope you’ll never need—but when you do, it’s a game-changer. Installing one on your Tundra adds a serious layer of self-reliance and capability, whether you’re overlanding solo or leading the convoy.

Today, we’ll walk through how to install a winch on your Tundra—specifically with C4 Fabrication and Backwoods Adventure Mods bumpers that are pre-designed for integrated winch mounting.

Why Add a Winch?

A winch gives you the ability to self-recover from mud, snow, or sand when traction disappears. Pair it with a synthetic line and a quality fairlead, and you’ll have a dependable setup ready for anything.

Benefits:

• Solo recovery ability on trails or work sites

• Increased peace of mind for remote trips

• Perfect foundation for a complete overland rig

Tools & Supplies Needed

• Socket set (10mm–19mm)

• Torque wrench

• Wire cutters and crimpers

• Electrical tape or heat shrink

• 2-gauge winch wiring kit (if not included)

• Zip ties and gloves

Step-by-Step Install

Step 1: Prep the Bumper

If your Tundra has an aftermarket bumper like a Backwoods Adventure Mods Hybrid or C4 Fabrication Overland Series, remove the center grille insert or cover plate to access the winch tray.

Step 2: Mount the Winch

Lower your winch into position on the tray, aligning the bolt holes. Use the supplied Grade 8 hardware and torque to the manufacturer’s specs (usually around 35–40 ft-lbs).

Pro Tip: Always route the synthetic line through the fairlead before tightening the winch bolts completely.

Step 3: Wire the Solenoid

Mount your control box near the battery or on the inner fender. Connect the power (red) and ground (black) cables directly to the battery terminals.

For a clean install, use a Switch-Pros Panel to integrate control from inside the cab.

Step 4: Route the Winch Line

Feed the winch line through your Factor 55 Fairlead and attach your hook or thimble. Make sure there are no kinks or cross-wraps on the drum.

Step 5: Test the System

Reconnect the battery and test spooling in and out. Keep tension on the line to ensure even wrapping.

If everything functions correctly, reinstall any front trim panels and tidy your wiring with zip ties.

Recommended Products for a Complete Setup

• C4 Fabrication Front Bumper – Built-in winch tray, perfect fitment.

• Factor 55 Fairleads & Hooks – Premium recovery components.

• Switch-Pros Wiring Systems – Seamless in-cab control for lights and winches.

• Baja Designs Lighting – Complete your recovery setup with trail illumination.

Final Thoughts

A winch is the difference between waiting for help and getting yourself out. Once installed, it becomes one of those upgrades you’ll never regret adding.
